Wireless Suprex® Reader Extenders
SPX-5632
WIRELESS SUPREX® Dual Reader Extender
When you need to install 2 readers without dragging cable, need the readers to connect over city streets, parking lots, or other obstacles, or are dealing with damaged cable, use the SPX-5632 Wireless Dual Reader Extender.
Range: 1 mile / 1.5 km outdoors with line of sight, depending on environment.
How it works:
-
- 2 units included: Central unit connects to 2 readers;
- Remote unit connects to 2 reader ports on door hardware and panel, with a wireless connection in between
- Supports 2 reader LED and auxiliary I/O signals, with dry contact relay outputs for activating doors and gates
- 2.4 GHz wireless connection uses IEEE 802.15.4 wireless protocol
- 2 relays can supervise the reader-panel connection
UPC: 816684005589
Applications
Sites with in and out-readers or 2 readers requiring separate Wiegand ports, which are:
-
- more than 500 ft. from panel
- have damaged conduit
- connect to panel across city streets, parking lots, railroads, and more
- jobs where trenching and pulling cable is difficult, cost-prohibitive or restricted
- at remote entrances/gates
- in temporary locations
- in elevator cabs
Features
Overview
-

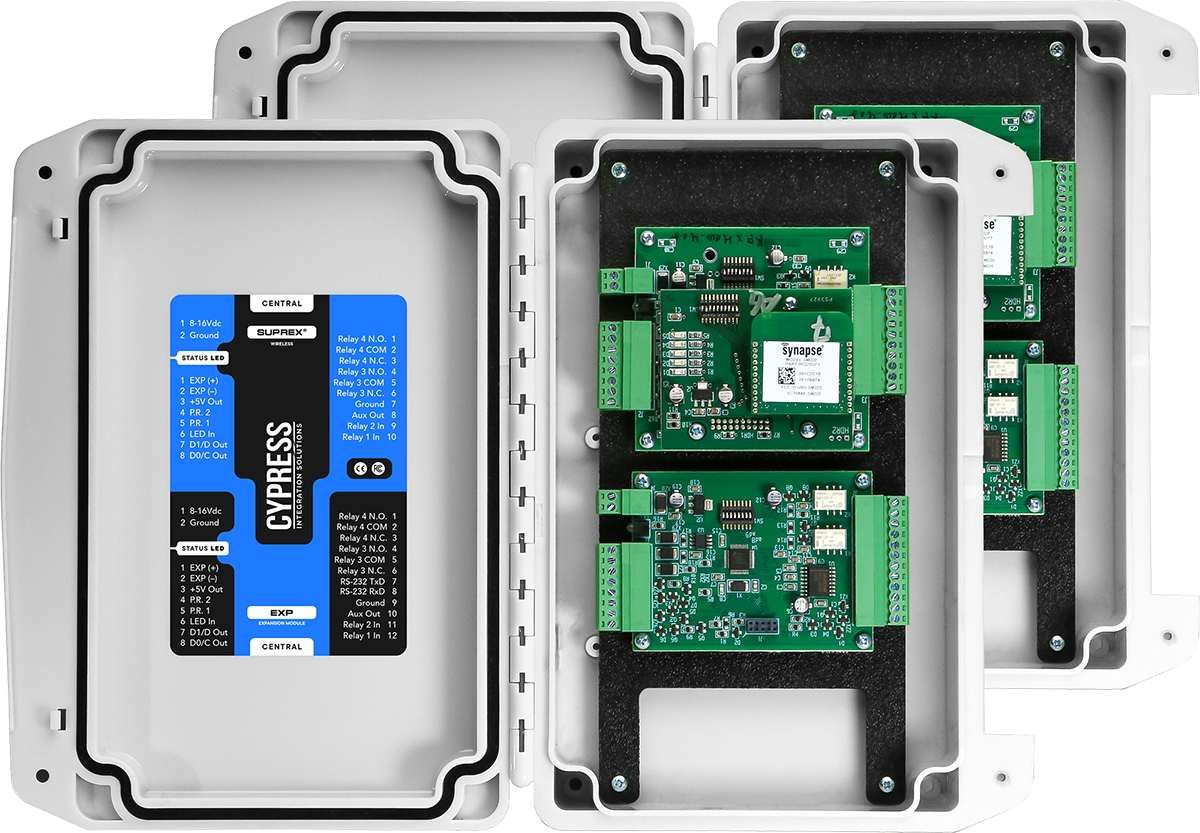

- Includes 2 units in outdoor enclosures
- Central and Remote units are preconfigured; ready to use in Wiegand mode out of the box
- Units can be paired in field if needed
- Minimal power requirement†
- Supports 2 readers out of the box; connect up to 6 more readers over one wireless connection using EXP-2000 Expansion Pairs (1 pair per additional reader)
- Lifetime warranty (registration required)
- Readily available through major distributors
† Central Unit can often be powered by panel’s reader port, and Remote Unit can often share power with readers
Communications
-
- Wireless 2.4GH using IEEE 802.15.4 protocol
- F-style chip antenna (omnidirectional; units do not have to directly face each other)
- 1-mile / 1.6 km outdoor range*
- Supervised communication mode available
* with line of sight, depending on environment
Reader Interface
-
- Supports 4-248 bits of credential data
- Supports Wiegand, Wiegand keypad, Strobed/Magstripe, and unsupervised F/2F interfaces
- Supports 2 readers’ LED and auxiliary digital I/O
- 4 dry contact relay outputs on Central Unit
- 4 dry contact relay outputs on Remote Unit
Environmental
-
- Weather-resistant ABS IP65 enclosure
- Dimensions per unit: 9.25 x 7.0 x 2.25 in. / 23.49 x 17.78 x 5.71 cm
- Central/Remote unit weight: 1.45 lbs. / 0.66 kg.
- Storage temperature:-40ºF to 212ºF / -40ºC to 100ºC
- Operating temperature:-22ºF to 140ºF /-30ºC to 60ºC
