Spx-7500 Suprex Cypress Integration

SPX-7500

Twisted Pair

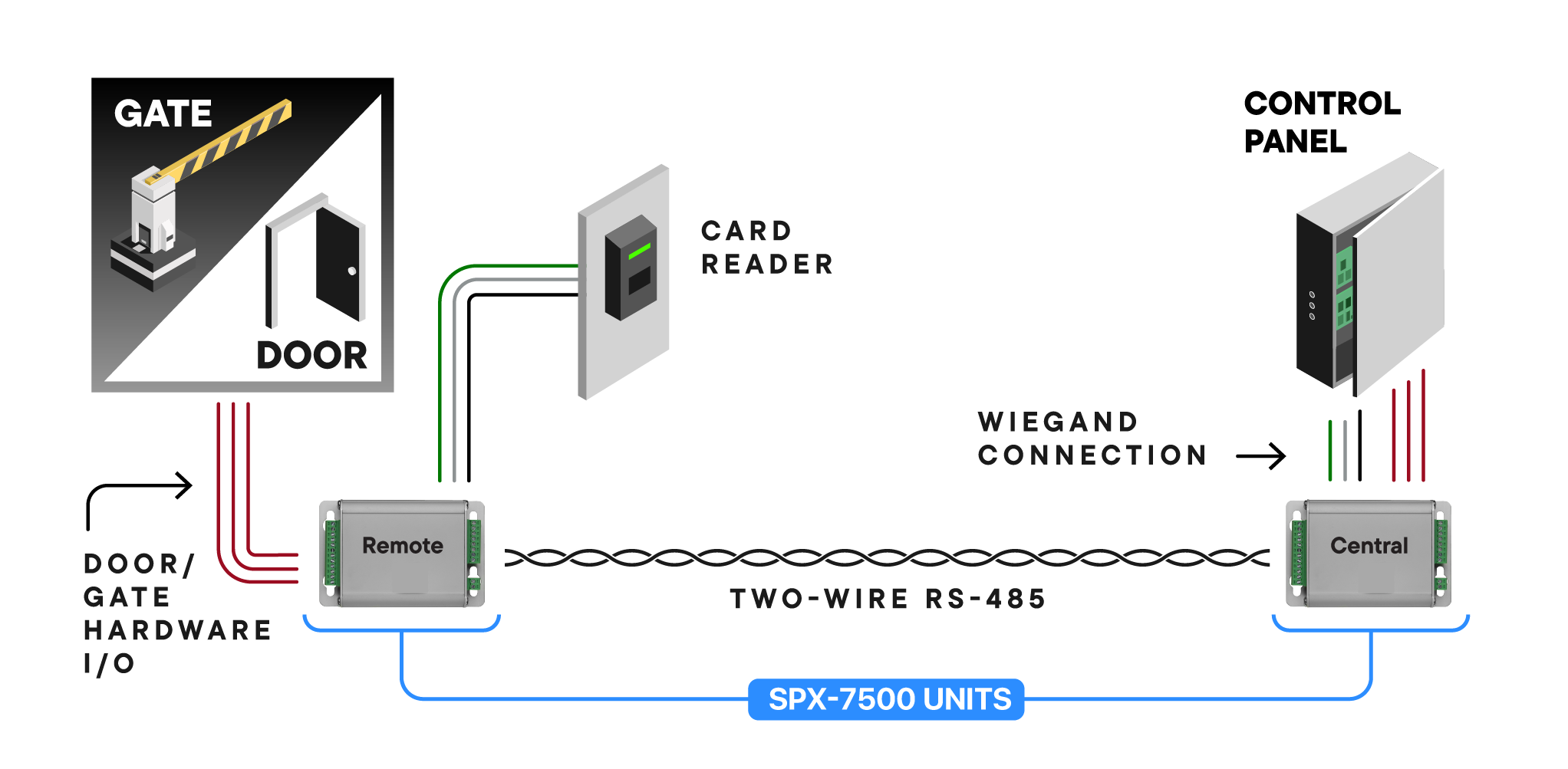

A member of the Reader Extender product family, the SPX-7500 connects 1 or more readers and associated door/gate hardware over any two wire cable, twisted or non-twisted, to any Wiegand or MagStripe based control panel. The RS-485 connection is totally supervised and secure . The base pair will support a single door and reader. Using Cypress Suprex® technology and the EXP-2000 expansion module allows for the addition of as many as 7 doors and readers over the same RS-485 connection. Includes both remote (reader/door) and central (panel) units.


UPC: 816684003103



ManualQuick StartWhere to Buy


Applications

    • Gates
    • Additional Doors
    • Elevators
    • Remote Offices


Features

Communications

    • RS-485 (twisted pair)
    • Fully Supervised



Reader Interface

    • Wiegand, MagStripe, Special



Mechanical

    • Extruded aluminum housing (4.45″ x 3.08″ x 2.0″)
    • Removable connectors
    • 8 – 16 VDC required



Dimensions



Related Products



EXP-2000



RS-485 Reader-Extender. Expandable to support up to 8 readers + door hardware with EXP-2000 expansion pairs.

SPX-1300



RS-485 Reader-Extender. Supports single reader + door hardware.
