Farpointe RANGER® Long-Range
Wiegand & OSDP Receivers & Transmitters
Farpointe RANGER® Wiegand 433 MHz Long-Range Receivers
Access at the click of a button
Ranger Receivers and Transmitters comprise Farpointe Data’s long-range radio frequency identification (RFID) solution. This solution operates at the globally harmonized frequency of 433-MHz and offers exceptionally long transmission ranges of up to 200 ft (61 m).
Users find Ranger to be ideal for a host of electronic access control applications, such as parking gates, vehicle barriers, and sliding doors. Additionally, each Ranger Transmitter may also be used as a traditional, presentation-style access control credential—just like a standard access card.
Benefits of 433-MHz Wiegand Ranger:
-
- Exceptionally long read range—up to 200 ft (61 m)!
- Ideal for parking facilities, gated communities, marinas and more
- Supports Wiegand interface
- Innovative security features such as MAXSecure™ (no HomeLink® support)
- Transmitters can be used as both a long-range and standard access credential
- Models also available to support SIA’s OSDP protocol with Secure Channel encryption (link to OSDP version)
WRR-22
Type: 2-channel Wiegand output long-range receiver
Read Range: Up to 100 feet (30.5 m)
Presentation Range: Up to 3.5 inches (88 mm)
WRR-44
Type: 4-channel Wiegand output long-range receiver
Read Range: Up to 200 feet (61 m)
Presentation Range: Up to 3.5 inches (88 mm)
RER-11
Type: 1-channel relay output long-range receiver
Read Range: Up to 100 feet (30.5 m)
Presentation Range: Up to 3.5 inches (88 mm)
Farpointe RANGER® OSDP™ 433 MHz Long-Range Receivers
Access at the click of a button
Ranger Receivers and Transmitters comprise Farpointe Data’s long-range radio frequency identification (RFID) solution. This solution operates at the globally harmonized frequency of 433-MHz and offers exceptionally long transmission ranges of up to 200 ft (61 m).
Users find Ranger to be ideal for a host of electronic access control applications, such as parking gates, vehicle barriers, and sliding doors. Additionally, each Ranger Transmitter may also be used as a traditional, presentation-style access control credential—just like a standard access card.
Learn more about the advantages of OSDP here.
Benefits of 433-MHz OSDP Ranger:
-
- Supports SIA’s OSDP protocol with Secure Channel encryption
- Exceptionally long read range—up to 200 ft (61 m)!
- Ideal for parking facilities, gated communities, marinas and more
- Supports Wiegand interface
- Innovative security features such as MAXSecure™ (no HomeLink® support)
- Transmitters can be used as both a long-range and standard access credential
- OSDP Verified mark assures conformity to the SIA Open Supervised Device Protocol (OSDP) standard and its related performance profiles
WRR-22+OSDP
Type: 2-channel long-range receiver; OSDP output on Channel 1, Wiegand output on Channel 2
Read Range: Up to 100 feet (30.5 m)
Presentation Range: Up to 3.5 inches (88 mm)
WRR-44+OSDP
Type: 4-channel long-range receiver; OSDP output on Channel 1, Wiegand output on Channels 2, 3, & 4
Read Range: Up to 200 feet (61 m)
Presentation Range: Up to 3.5 inches (88 mm)
Farpointe Ranger® Long-Ranger Transmitters
Minimum credential order quantity: 5
A completed credential order form is required when ordering credentials, to specify credential format (default 26-bit), facility code, and card number range.
WRT-2M

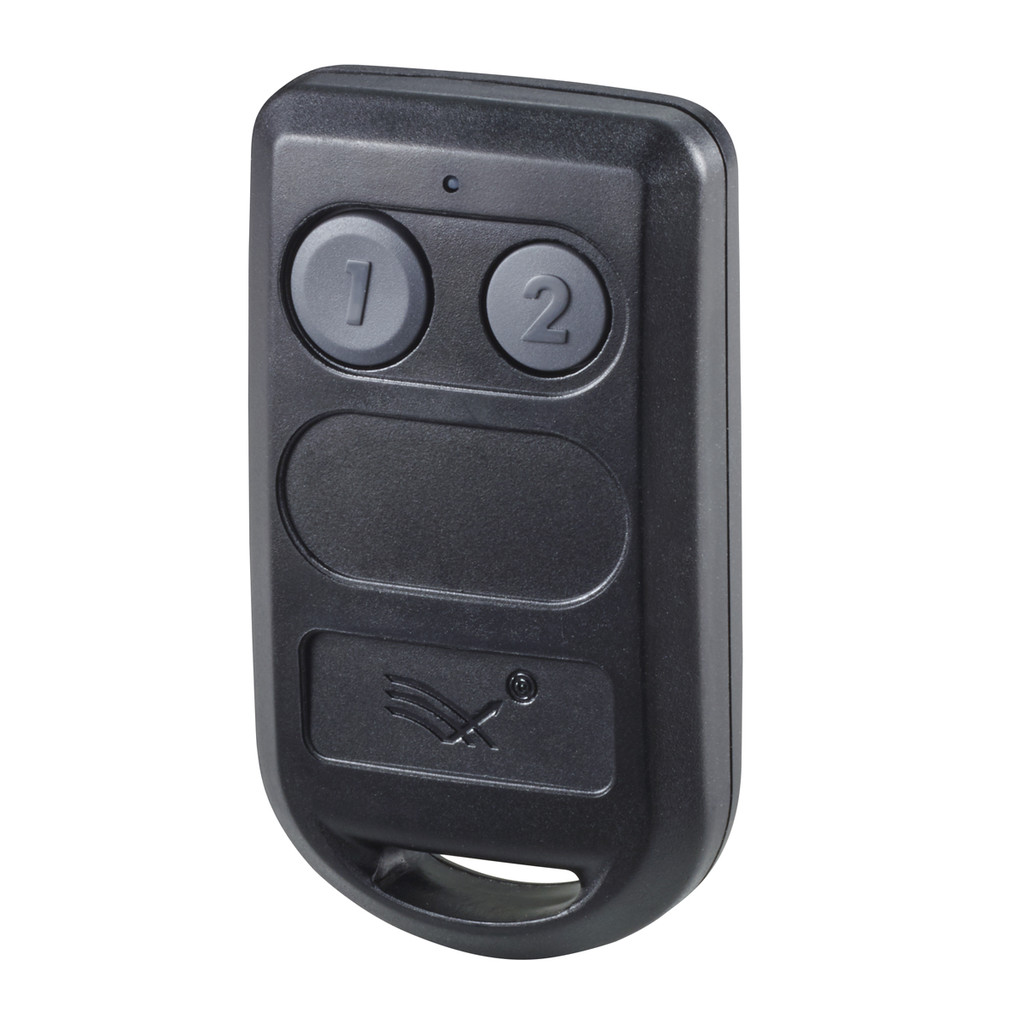

WRT-2+B
WRT-2+A
