OPTW-100

Wiegand Splitter

Upgraded: Now powered with 5-16Vdc

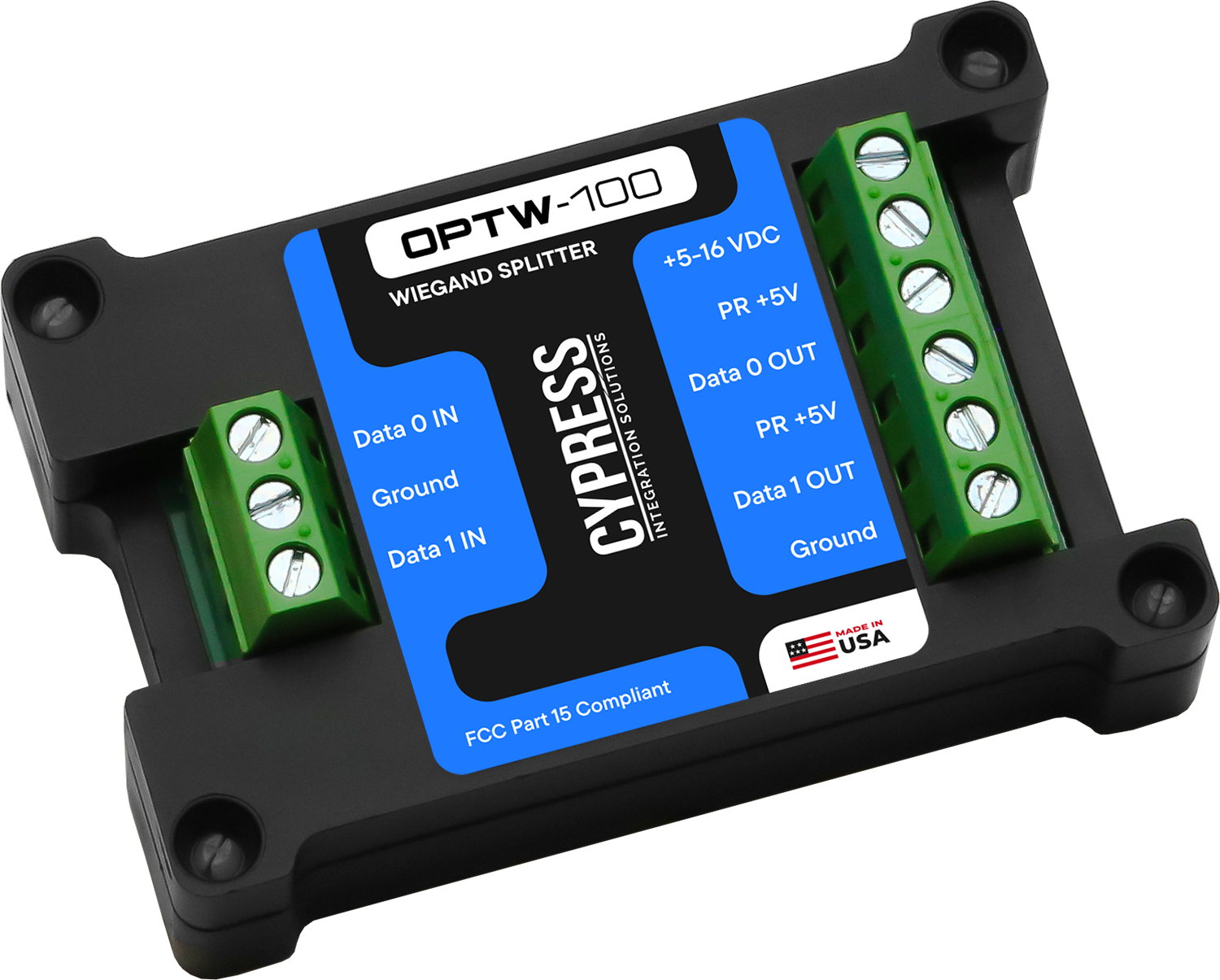

The Cypress Wiegand Splitter lets you connect 2 readers using the same Wiegand port, or connect 1 reader to 2 panels. The Splitter also lets you connect 2 Wiegand devices with different data voltages or ground potential issues, as it optically isolates data signals between the devices. It is powered with 5 or 12 Vdc, so you can use the reader’s power — no separate power supply is required.


UPC: 816684007910

Now Shipping!



ManualQuick Start


Features

    • Power input: 5-16 Vdc
    • Can use 12Vdc Wiegand panel power output
    • Wiegand input data lines are floating and accept data voltage of 5-24 Vdc
    • Wiegand output data lines are floating; OPTW’s 5 Vdc pull-up resistors can be jumpered to Wiegand output data lines as needed


Recommended For:

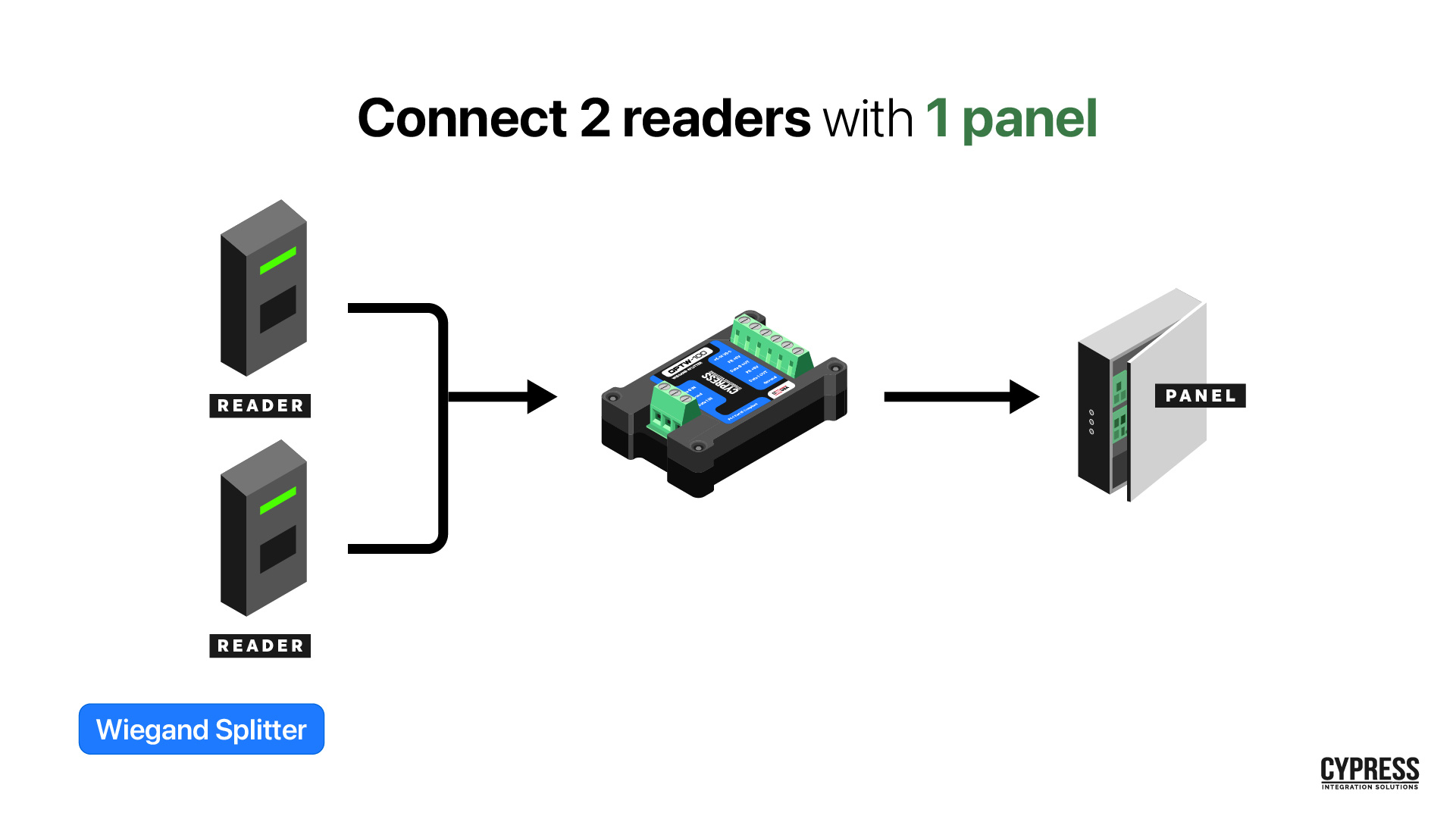

    • Connecting 2 Wiegand readers to 1 Wiegand port, such as at a vehicle gate with high and low readers

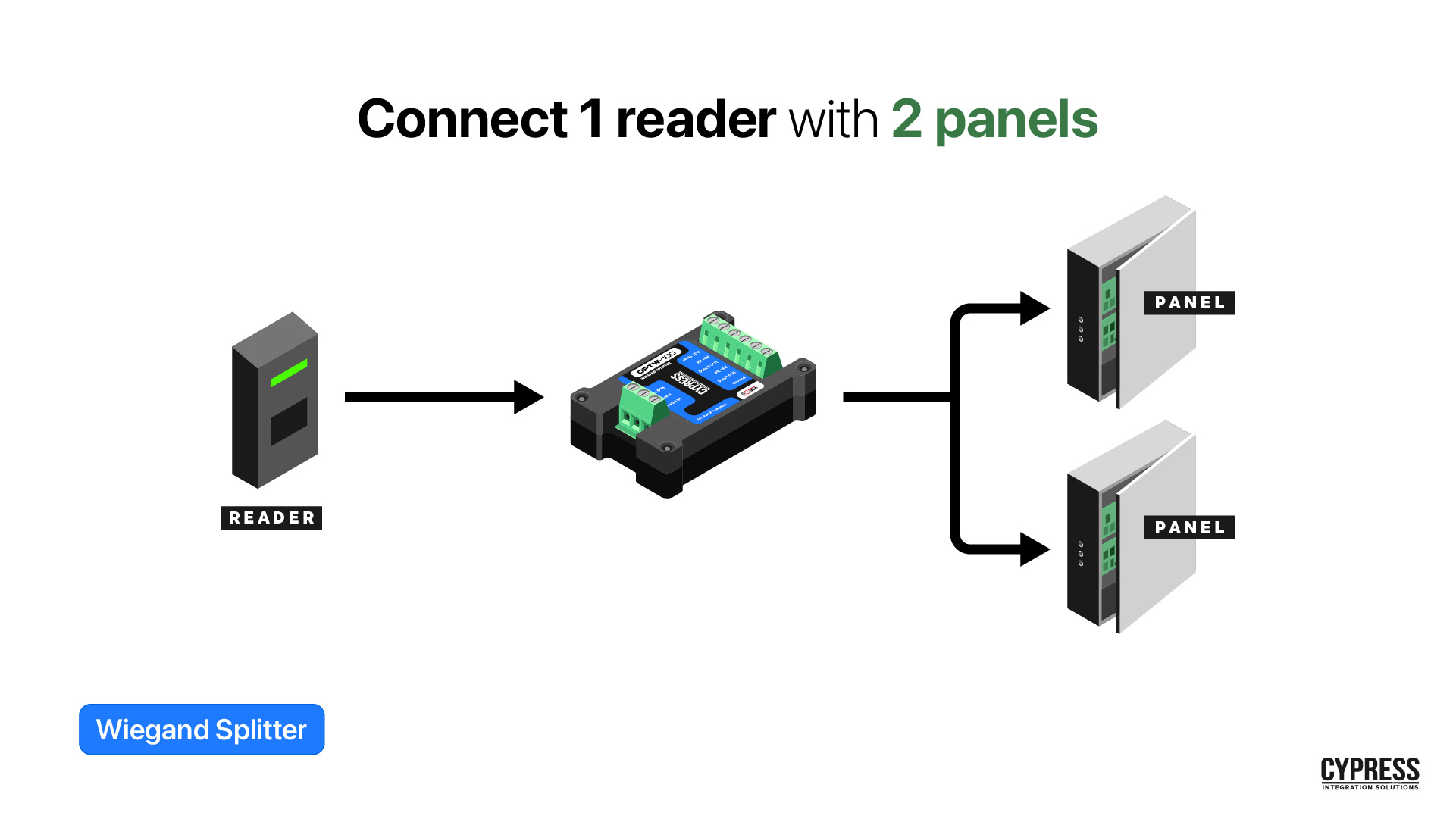

    • Connecting 1 Wiegand reader to 2 Wiegand panels (same data to both panels), such as when 2 tenants share an entry door
    • Optically isolating a Wiegand reader from a Wiegand panel to address incompatible data voltage levels or ground potential issues
